Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AOST-OEM
  • Model Number: CVI-109C-HD
  • Function 1: Compatible with all HD-CVI, HD-TVI, HD-AHD
  • Function 2: Up to 450m for 720P CVI Cameras
  • Function 3: Up to 250m for 1080P CVI Cameras
  • Function 4: Up to 250m for 720P/1080P TVI Cameras
  • Function 5: Up to 320m for 720P AHD cameras
  • function6: up to250m for 1080p AHD camera

Packaging & Delivery

Packaging Details standard export packing
Delivery Time Shipped in 3 days after payment

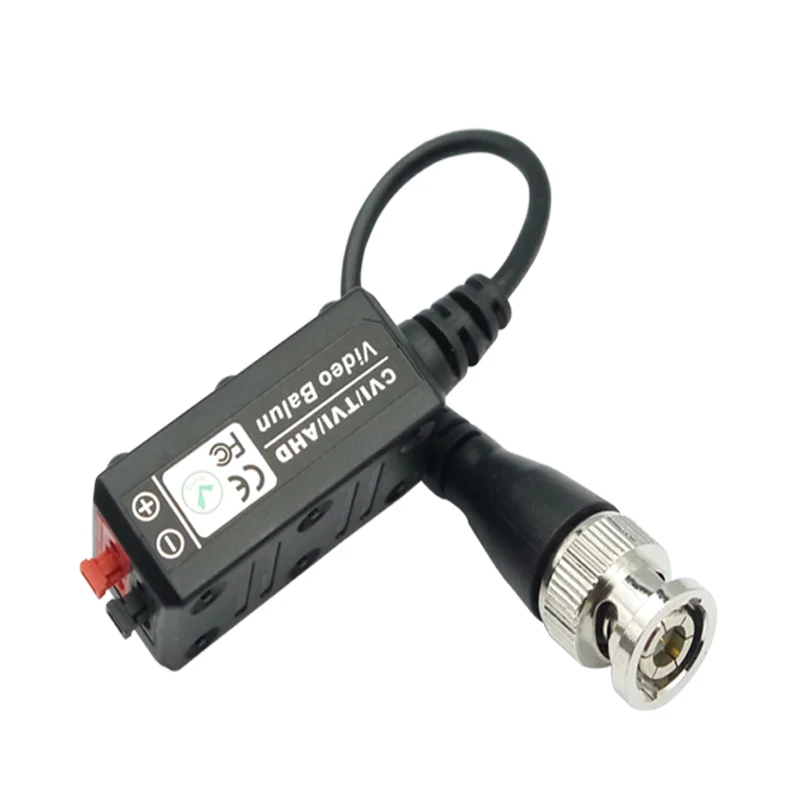

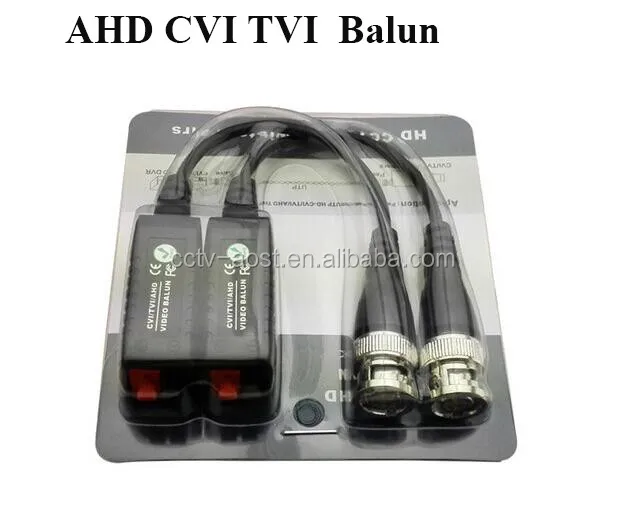

UTP AHD cameras video balun HD-CVI balun Model CVI-109C-HD

 Features:
Compatible with all HD-CVI, HD-TVI, HD-AHD

Up to 450m for 720P CVI Cameras

Up to 250m for 1080P CVI Cameras

Up to 250m for 720P/1080P TVI Cameras

Up to 320m for 720P AHD cameras

Up to 250m for 1080p AHD cameras


NTSC, PAL, and SECAM video formats
No power required
60dB cross talk and noise immunity.
Compact size and easy installation
Built-in transient suppression protection
Innovative combinable design
.
Technical Specifications
Frequency response: DC to 60Mhz
Attenuation: 0.5dB type
CMRR: 60dB
Surge protection:4KV
                        ESD:8KV
Connectors: Male BNC and terminal blocks
Impedance: BNC: 75ohms
                  Terminal: 100ohms
Working Temperature: -10℃ to +70℃
Storage Temperature: -30℃ to + 70℃
Humidity : 0 to 95%
Dimension: 33mm*17mm*16mm (excluding connectors)
Material: ABS Plastic

Packing :
